Combilift Aisle Master Order Picker

Combilift Aisle Master Order Picker

Combilift Aisle Master Order Picker

Combilift Aisle Master Order Picker

Aisle Master Order Picker

Combilift
Multi-Directional

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

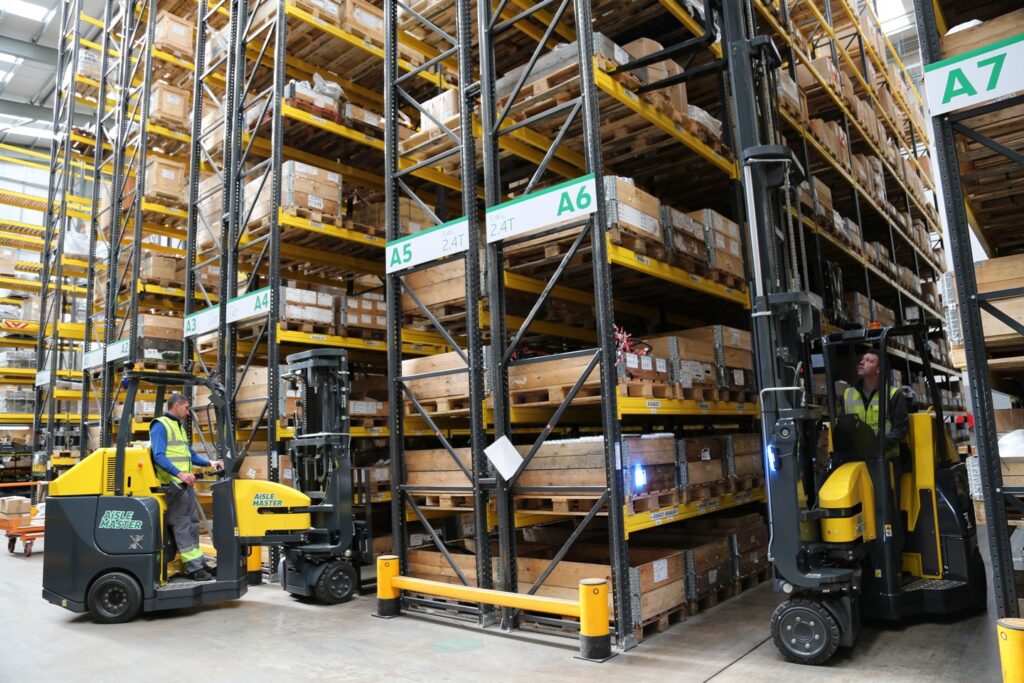

The NEW Aisle Master-OP (AME-OP) is a stand-on electric powered model that combines the advantages of a narrow aisle articulated forklift and an order picker for versatile operation in warehousing applications.

The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

Ergonomically designed operator’s cab
Reduced energy consumption
AC Traction motor (19.5 kw)
Quick & easy battery removal
A choice of 620/775/930 amp-hour capacity batteries

Specifications
Documents

Step Height: 280mm
Mast Tilt (Back/Forward): 3//1 Degrees
Wheel Base: 1733mm
Ground Clearance: 87mm
Overall Length: 2780mm
Overhead Guard Height: 2286mm
Gradeability: 12%/15%
Battery Voltage: 12%/15%
Height Mast Raised: 5174mm
Ground Speed: 8km/h
Chassis Width – Rear: 1400mm
Truck Weight Less Battery: 6165kg
Mast Range: 4300-12100mm
Chassis Width – Front: 980mm
Front Tyre Size: 412x174mm
Lift Speed Laden/Unladen: 0.4/0.5 m/s
Rear Tyre Size: 457×228mm
Fork Carriage Width: 980mm
Height Mast Closed: 1365mm
Capacity: 2000kg
Load Centre: 600mm

Documents

Download Product Spec Sheet
