C-432
- Taylor-Dunn
- Electric Utility Vehicles
Key Features & Specs

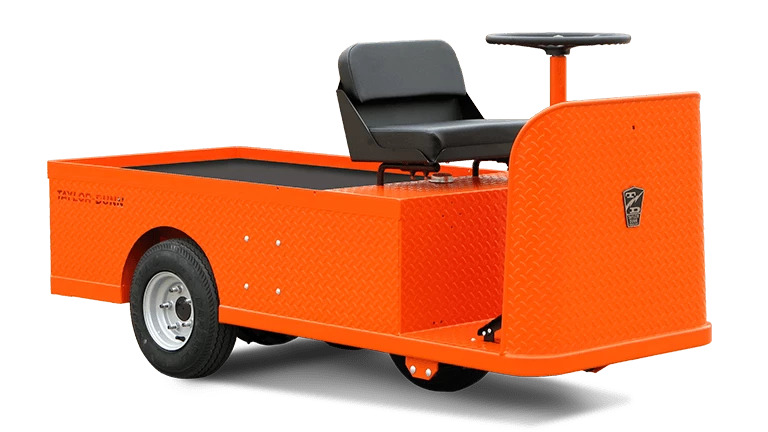

Sit down tow tractor and electric utility cart with tight turning radius perfect for tight spaces.
Optional Accessories headlights, stoplight, reverse beeper, fiberglass cab, high-capacity batteries, hard-rubber tires, spring-loaded hitch, non-marking tires, stake sides, and diamond deck.
- Range up to 20 miles
- Indoor and outdoor use
- 36 volt electric
- Tow capacity of 8,750 pounds
- Load capacity of 1,400 pounds
- One person capacity
- Speed up to 9 mph
- Interior: Instrumentation: Battery status indicator, forward/reverse selector, key switch, electric horn
- Chassis: Battery: Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In
- Dimensions: Weight: 918 lbs. (417 kg)
- Chassis: Steering: Manual, Chain Linkage, Front Fork
- Chassis: Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
- Performance: Range: 20 miles (32 km)
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Silent Chain Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: Series
- Performance: Passengers: 1
- Performance: Tow Capacity: DBP: 175 lbs. Tow Capacity: 8,750 lbs. (3977 KG
- Chassis: Suspension: Rear: Solid Front: Solid
- Chassis: Brakes: Rear: Mechanical brake band/drum at differential Front: N/A Parking: Hand
- Performance: Speed: 9 mph (14.4 km/h)
- Performance: Load Capacity: 1,400 lbs. (635 kg)
- Interior: Seats: Driver: Passenger:
- Chassis: Frame Construction: Steel unitized body with heavy duty 16 gauge diamond plate
- Dimensions: Width: 29.5" (75 cm)
- Dimensions: Wheel Base: 28" (71.1cm)
- Dimensions: Outside Turning Radius: 70" (177.8cm)
- Dimensions: Hitch Height: 8.5" (21.58cm)
- Dimensions: Length: 79" (200 cm)
- Dimensions: Height: Less Cab: 40" (101 cm) With Cab: 64.5" (164 cm)
- Dimensions: Deck: Width: 28.5" (74.9cm) Length: 40" (101.6cm) Height: 23.9" (58.4cm)
