i60

  • Icon
  • Electric Utility Vehicles

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

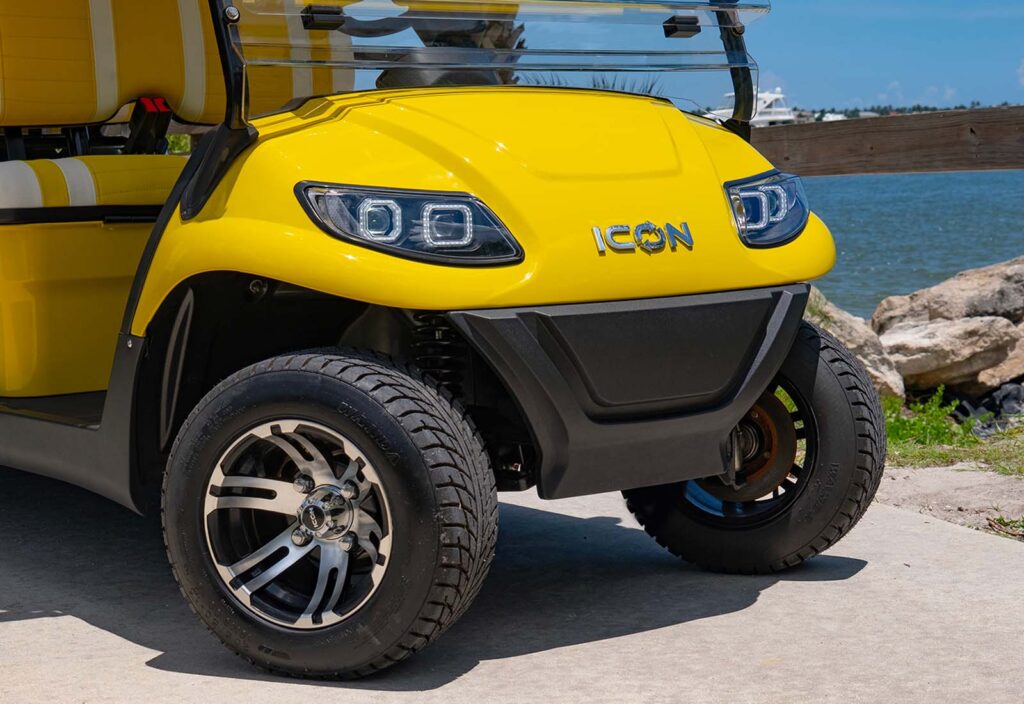

The ICON i60 is the ideal golf cart for hotels, resorts, big families and commercial use to comfortably transport six passengers in style!

The i60s are loaded with class-leading features like 10″ aluminum wheels, 4-wheel disc brakes, powder-coated steel chassis, lights, turn signals, high-speed rear ends, durable front and rear bumpers, painted rooftops, horns, digital gauges, and more.

The ICON i60 comes standard with (8) 6V Sealed Maintenance-Free AGM batteries, an upgraded 48V ICON 5kW 3 Phase High Torque motor, and a controller for ICONIC performance! Optional upgrade to 51V 105AH Eco Lithium Battery now available!

  • 48V ICON 5kW AC motor and controller
  • Onboard battery charger
  • 10″ aluminum wheels
  • (8) 6V sealed maintenance-free AGM batteries
  • + Expand All
  • - Close All
  • Electrical Systems
    Controller

    450A ICON Controller

    Motor

    48V ICON 5kW 3 Phase High Torque Motor

    Charger

    ICON 48V Onboard Charging System with Body Mounted Charge Indicator

    Batteries

    (8) 6V Sealed Maintenance-Free AGM Batteries, or an optional upgrade to 51V 105AH Eco Lithium Battery now available!

  • Windshield: Foldable Acrylic/Optional DOT Acrylic
  • Drivetrain: 14:1 High Speed Rear Axle
  • Body: Injection Molded Thermoplastic that is both stylish and resilient to outside damage
  • Rear Suspension: Solid Axle Coil Over Shock and Stabilizing Bar
  • Lighting and Signals: Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn
  • Seats: Marine Grade Vinyl, Custom Stitched Panel, Single Color, Color Matched with White or Black Accents. Fold Flat Rear Seat for Hauling
  • Colors: White, Black, Sangria, Orange, Purple, Torch Red, Champagne, Yellow, Lime Green, Forest Green, Caribbean Blue, Silver, Indigo Blue
  • Steering: Self-Adjusting Double-Ended Rack and Pinion
  • Capacity: 6 People
  • Floor: High-Density Polyethylene molded for extra strength and toughness with Rubber Floor Mat
  • Instrumentation: Fully Integrated Digital Instrument Cluster
  • Chassis: Tubular Powder Coated Steel Frame
  • Dash Components: Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster
  • Weight: 1477 lbs
  • Safety Restraint: Side Hip Restraint & Retractable Seat Belts
  • Overall Dimensions: 134inx49inx75in
  • Front Suspension: Macpherson Style Fully Independent Coil Over Shock with Camber Adjustment
  • Roof: Innovative air deflecting design with full high-strength aluminum frame
  • Wheels: 10" or 12" Machined Face Aluminum with Powder Coated Accents
  • Braking System: Four Wheel Disc Brakes and Electromagnetic Parking Brake System
  • Mirrors: Fully Adjustable and Foldable
  • Tires: 205/50-10 6 Ply Nylon Cord or 215/35-12 4 Ply Nylon Cord
