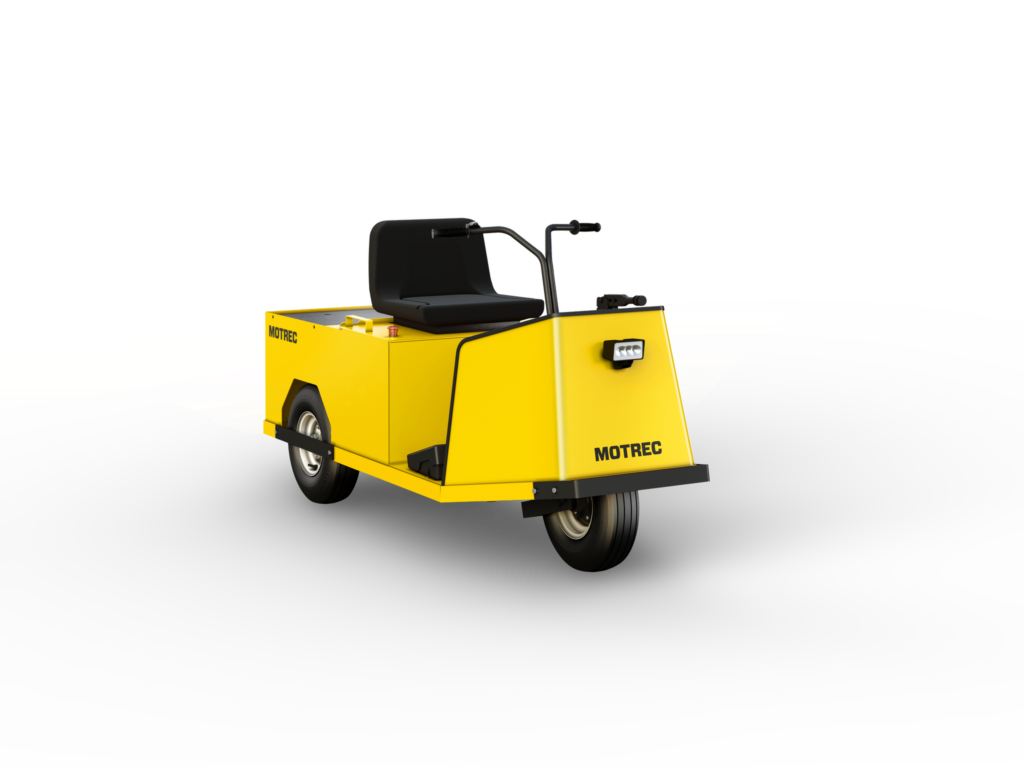

Motrec MP-240
  • + Expand All
  • - Close All
  • SpecificationsTable
    24V36V
    Passengers
    11
    Load Capacity500 lbs.500 lbs.
    Towing Capacity2,000 lbs.6,000 lbs.
    Speed7 mph9 mph
    Turning Radius71 "71 "
    POWERTRAIN
    Motor6 hp shunt motor10 hp shunt motor
    Drive AxleHelical gear differentialHelical gear differential
    TransmissionDirect driveDirect Drive
    ControllerSEPEX Electronic speed controllerSEPEX Electronic speed controller
    ENERGY
    Voltage24V36V
    BatteryFour 6V-225AH batteriesSix 6V-225AH batteries
    ChargerHigh-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
    CHASSIS
    Body14-G diamond-plate steel body, tubular frame, powder coating.14-G diamond-plate steel body, tubular frame, powder coating.
    SuspensionDual coil springs & shock absorbers on front, dual coil springs and shock absorber on rearDual coil springs & shock absorbers on front, dual coil springs and shock absorber on rear
    BrakesDual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative brakingDual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
    Wheels4.8x8 LRC pneumatic tires4.8x8 LRC pneumatic tires
    SteeringHandlebarHandlebar
    SeatsBucket seat on slide adjustersBucket seat on slide adjusters
    EQUIPMENT
    LightsLED headlight & tail/brake lightLED headlight & tail/brake light
    IndicatorsBattery status indicatorBattery status indicator
    AccessoriesBolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
    SafetyReverse alarm, Deadman foot switch, HornReverse alarm, Deadman foot switch, Horn
    VEHICLE
    Weight480 lbs.1,000 lbs.
    Height40"46"
    Length78"79"
    Width30"30"
    Wheel Base50"57"
    DECK
    Deck Height25"25"
    Deck Length20"20"
    Deck Width30"29"
    BATTERY
    Battery Weight
    Battery Height
    Battery Length
    Battery Width
