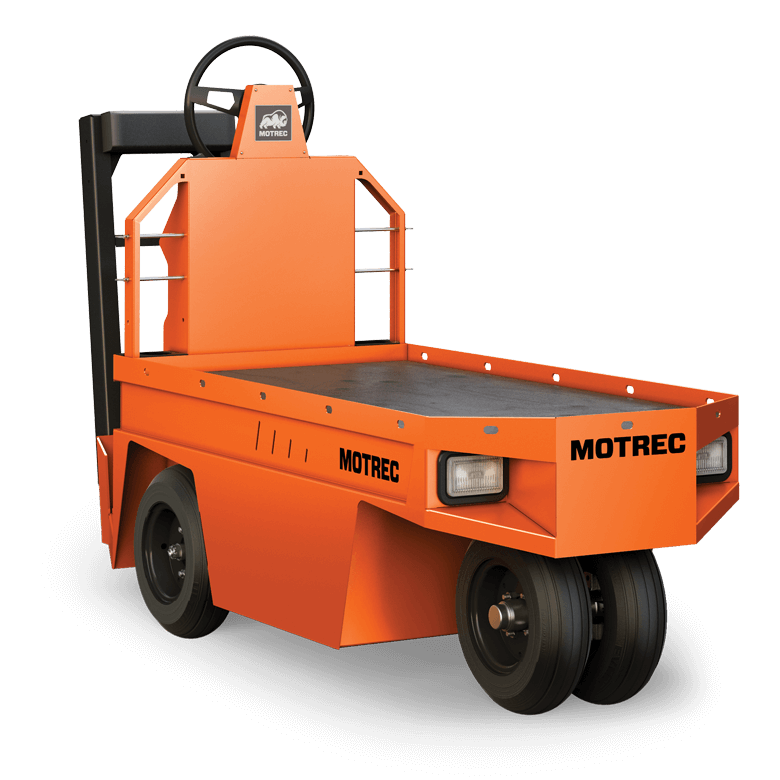

Motrec MS-260
  • + Expand All
  • - Close All
  • Specifications Table
    24V36V48V
    Passengers111
    Load Capacity1,250 lbs.1,500 lbs.1,750 lbs.
    Towing Capacity2,500 lbs.6,000 lbs.6,000 lbs.
    Speed8 mph8 mph8 mph
    Turning Radius60 "60 "60 "
    POWERTRAIN
    Motor6 HP shunt motor10 HP shunt motor15 HP brushless AC motor
    Drive AxleHelical gear differentialHelical gear differentialHelical gear differential
    TransmissionDirect driveDirect driveDirect drive
    ControllerSEPEX Electronic speed controllerSEPEX Electronic speed controllerElectronic AC speed controller
    ENERGY
    Voltage24V36V48V
    BatteryFour 6V-225AH batteriesSix 6V-225AH batteriesEight 6V-225AH batteries
    ChargerHigh-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automaticHigh-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automaticHigh-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
    CHASSIS
    BodyAll-steel unibody construction, powder coatingAll-steel unibody construction, powder coatingAll-steel unibody construction, powder coating
    SuspensionLeaf springs rear suspension system, dual front wheels to ensure the stabilityLeaf springs rear suspension system, dual front wheels to ensure the stabilityLeaf springs rear suspension system, dual front wheels to ensure the stability
    BrakesSelf-adjusting H.D. drum brakes, automatic parking brake, regenerative brakingSelf-adjusting H.D. drum brakes, automatic parking brake, regenerative brakingSelf-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
    WheelsPneumatic LRC tiresPneumatic LRC tiresPneumatic LRC tires
    SteeringAutomotive steering wheelAutomotive steering wheelAutomotive steering wheel
    SeatsPadded backrestPadded backrestPadded backrest
    EQUIPMENT
    LightsLED dual headlightsLED dual headlightsLED dual headlights
    IndicatorsBattery status indicatorBattery status indicatorMultifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
    AccessoriesUSB charger, backlit and sealed buttonsUSB charger, 36V/12V converter for 12-volt accessories, backlit and sealed buttonsUSB charger, 48V/12V converter for 12-volt accessories, backlit and sealed buttons
    SafetyReverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switchReverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switchReverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch
    VEHICLE
    Weight
    Height54"54"54"
    Length87"87"87"
    Width30"30"30"
    Wheel Base43.5"43.5"43.5"
    DECK
    Deck Height23"23"23"
    Deck Length59.25"59.25"59.25"
    Deck Width29.25"29.25"29.25"
    BATTERY
    Battery Weight
    Battery Height
    Battery Length
    Battery Width
  • FULL SPECIFICATIONS OF OUR 48V LITHIUM SOLUTION
    Vehicles Energy
    quantity
    Chargers
    capacities
    Charging
    time
    Charger input
    voltage
    Batteries
    weight
    MS-260 / MS-260 XL 6.2 Kwh (120 Ah) 1.2 Kwh 4h 120V or 240V 83.8 lbs
    9.3 Kwh (180 Ah) 1.2 Kwh 4h 125.7 lbs
    2.4 Kwh 3h 240V
