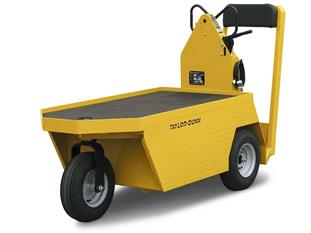

SC-100
- Taylor-Dunn
- Stock Chasers
Key Features & Specs
The SC-100 24V is designed with an all steel unitized body with automotive differential and 24 volt GT drive system, providing years of service in rugged applications. Equipped with 4, 5 or 6 step ladder, the SC-100 36V allows the operator to pick materials from higher stock locations.
Options like multilevel shelving, clipboard, automotive steering wheel or extended deck overlay provide maximum functionality for your operation.
The SC-100 24V configured with roll out or lift out battery box can provide 24 hours of service in any warehousing application.
- Interior: Instrumentation: Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter
- Chassis: Steering: Manual, Chain Linkage, Front Fork
- Performance: Tow Capacity: 5,000 lbs. (2,273 kg)
- Chassis: Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
- Performance: Range: 20 miles (32 km)
- Chassis: Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
- Chassis: Battery: Type: Four 217 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM
- Performance: Load Capacity: 1,000 lbs. (450 Kg.)
- Chassis: Suspension: Rear: Solid mounted rear axle Front: Solid
- Performance: Speed: 8 mph (12.9 km/h)
- Performance: Passengers: 1
- Dimensions: Weight: 970 lbs (440 kg.)
- Chassis: Brakes: Rear: Hydraulic disc Front: N/A Parking: Hand
- Interior: Seats: Driver: Passenger:
- Dimensions: Outside Turning Radius: 67" (170.0cm)
- Dimensions: Wheel Base: 47.25" (119.9cm)
- Dimensions: Hitch Height: 12" (30.5cm)
- Dimensions: Deck: Width: 29.5" (75.2cm) Length: 58.5" (148.9cm) Height: 25" (63.5cm)
- Dimensions: Width: 29.5" (75 cm)
- Dimensions: Height: Less Cab: 48.25" (122 cm) With Cab: N/A
- Dimensions: Length: 85.75" (217 cm)
